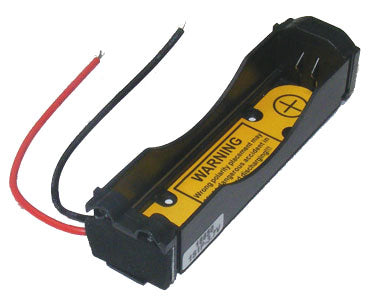

Battery holder : Li-Ion 18650 Battery Holder (1S1P) With PCB (#5596)

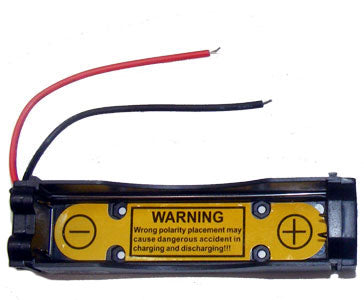

Battery holder : Li-Ion 18650 Battery Holder (1S1P) With PCB (#5596)
Battery holder : Li-Ion 18650 Battery Holder (1S1P) With PCB (#5596)-2

WISDOM SKU: 1S1P-18650 Product ID: 5596

$9.14

Shipping calculated at checkout

In stock!
Terminal: 1S1P-18650: 2.6" long 20AWG
Orders are expected to ship in 30 days

Add $125.00 more for FREE shipping!
Description Page Return and Exchanges Page
 Feature
  • 18650 battery holder with PCB module designed for making 3.7V Li-Ion 18650 battery pack in 1 series 1 Parallel configuration with 3.0A limited by PCB installed
    • Battery pack watt-hour = 3.7V x cell capacity
  • Each holder is design to hold 1  x standard (Flat top) 18650 cell  (Do NOT use button top cell)!
 Protection
  • PCB (3.0A limited, Manufacture part# PCM-L01S03-328) installed on front surface for protect the battery from
    • Overcharge (>4.2V)
    • Over discharge ( <2.5 V)
    • Over drain ( >3.0 Amp)
    • Short circuits
 Terminal
  • 1S1P-18650: 2.6" long 20AWG for charge/discharge terminal
  • 1S1P-18650-M5264 : 6" 22AWG with Molex 5264. (See drawings) - Minimum 500pcs required.
 Related Products
 Material
  • Polypropylene
 Color
  • Black
 Size  (LxWxH)
  • 80mm(3.14") x 21mm(0.8") x 18.6mm(0.7")
 Weight
  • 0.1 Oz (2.8 grams)
 Temperature
  • Storage temperature: 25'C (77F, Room Temperature)
  • Max Operate temperature: 80'C (176F)
 Drawing
 Warnings
  • This battery holder is designed for standard 18650 (flat top) battery only!
  • Please don't remove PCB installed on battery holder.
  • This battery holder is for only 1S1P battery pack. Please don't combine battery holder for any series / parallel connection.
  • After insert battery(ies), must connect to charger to enable the pcb. Otherwise, you will get "no" output from pcb!
  • Li-Ion battery may be exploded if misuse.  We are not responsible for any damages or losses caused by misusing
  • Always charge battery with attention.  Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into device. Never make wrong polarity connection.
  • For safety warning please see the link here
